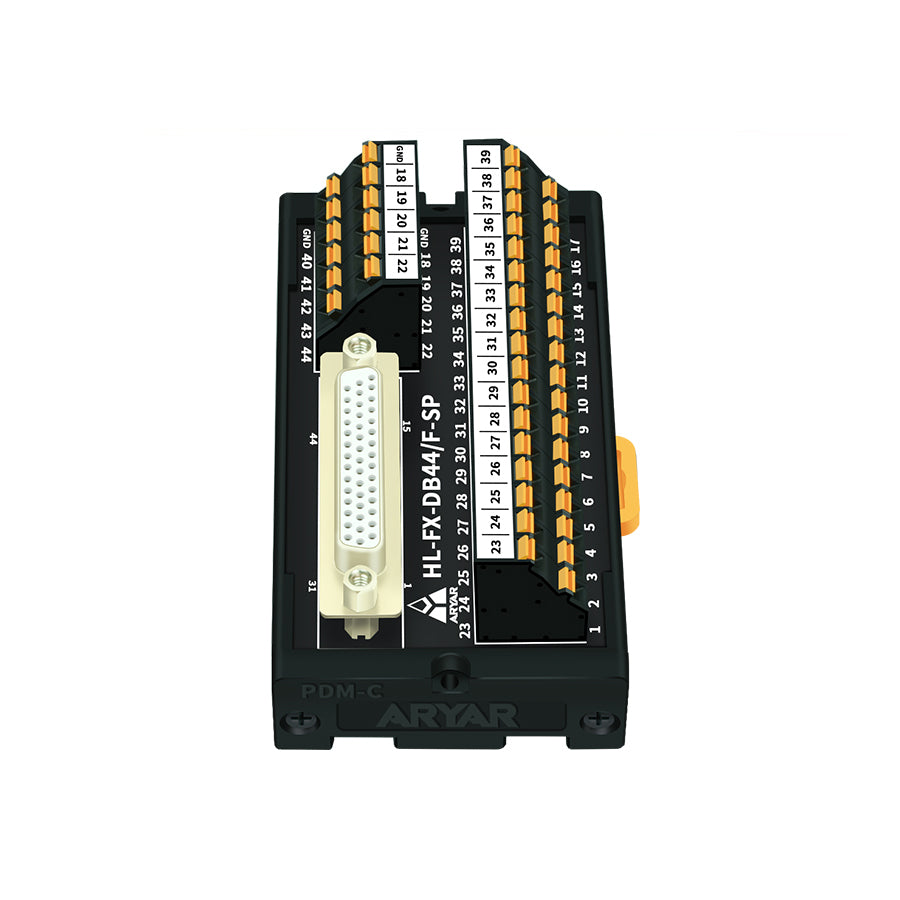

DB44 relay terminal block express wiring crimp for Delta B2 leisai invt inovance and other servo wiring Servo terminal block

DB44 relay terminal block express wiring crimp for Delta B2 leisai invt inovance and other servo wiring Servo terminal block

$15.00 USD
$15.00 USD
Sale Sold out
Model

Terminal block:
Genuine spring-loaded terminal blocks with strong and stable wiring, convenient and fast
The terminal block corresponds to the 44P D-SUB connector
Stable signal transmission, safe and reliable
No need to weld wires, just one to one pin wiring, clear parameters
GND for the plug surgical ground, has been led to the terminal, convenient ground wire
Can be directly applied to the board, servo driver signal interface

Terminal block specifications:
Model: HL-FX-DB44/F-SP
Connector type: 44P D-SUB Female
Rated voltage: DC24V, AC125V
Output terminal: European type
Insulation resistance: 100 megohms or more (DC500V)
Withstanding voltage: AC500V, 1min
Operating temperature: -20 degrees Celsius ~ +55 degrees Celsius
Suitable wire: AWG 22-16(0.3~1.25 square mm), 6~7mm
Mounting method: DIN 35mm rail, flat panel mounting
Suitable use: mechanical equipment, PLC, industrial control
Pitch - 5.0mm.
Rated voltage - 150V.
Rated current - 10A.
Wire range - 26-16AWG.
Strip length - 5mm.
Screws - M2,steel,Cr3+ Zn plated.
Torque - 0.2Nm (1.7Lb-In.)


Cables:
Use twisted shielded wire, strong anti-interference ability
HL-DB44-M/M-1M servo controller with 44P plug, convenient for quick wiring
There is a loose wire way, convenient for flexible use

Cable specifications:
Wire gauge: AWG28
Braiding network: twisted shielded wire
Conductor composition: 7/0.127
Conductor material: soft copper wire
Coating layer: PVC
Conductor impedance and insulation resistance (20 degrees Celsius): conductor impedance: 239 Ohm/Kn or less; insulation resistance: 50 megohm/Kn or more
Withstand voltage (air): AC500V/min
