Delta

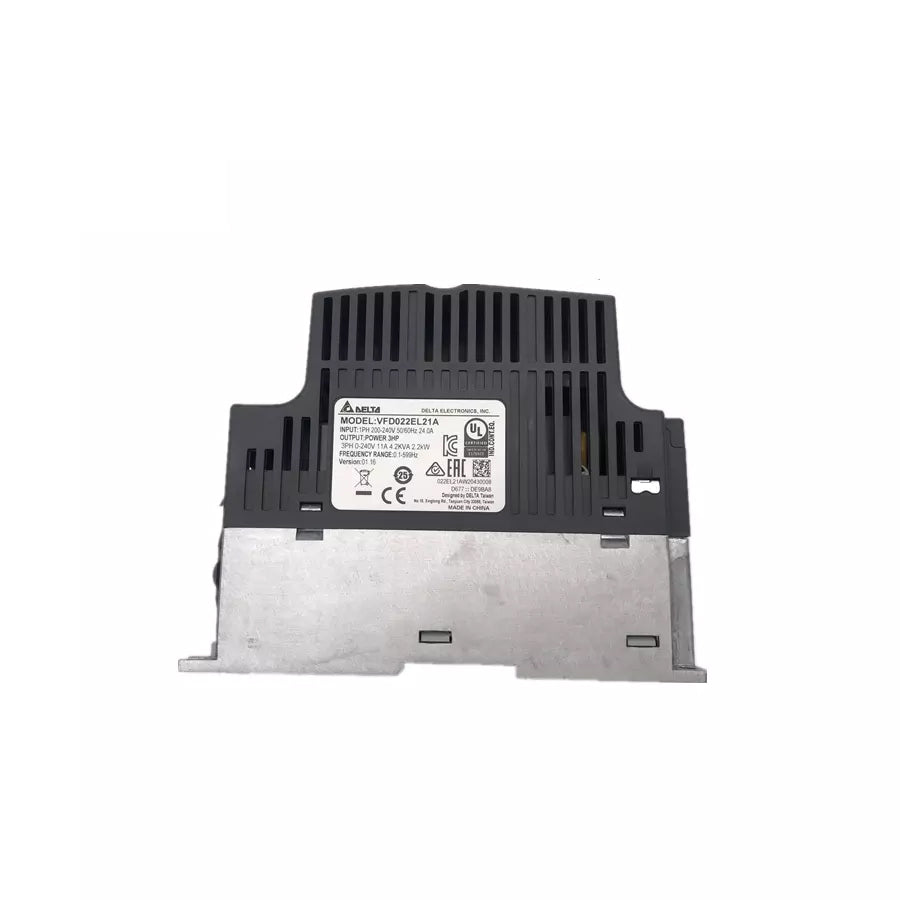

Delta VFD-EL 2.2kW VFD022EL21A VFD
Delta VFD-EL 2.2kW VFD022EL21A VFD
Regular price
$169.00 USD
Regular price
Sale price
$169.00 USD
Unit price
per
Couldn't load pickup availability
- Delta Inverters VFD-EL 2.2KW VFD022EL21A 220V
- Output frequency: 0.1~600Hz
- 3 points adjustable V/f curve
- Built-in PID feedback control
- RFI-switch for IT mains
- Built-in EMI filter (for models 230V 1-phase and 460V 3-phase)
- Use RS-485 communication interface (RJ-45) with Modbus protocol
- Optional communication modules for multiple communication protocols, such as Profibus, DeviceNet, LonWorks and CANopen
- Complete protection function
Features:
Standard Modbus Protocol
Standard Modbus protocol via RS-485
Built-in EMC Filter
(230V single-phase and 460V 3-phase)
The built-in EMC filter reduces electromagnetic interference and complies with the EN61800-3 standard
Complete Protection Functions
High precision current detection, full overload protection (oL, oL1 and oL2), overvoltage/overcurrent stall prevention, short-circuit protection, reset after fault, speed search function and motor overheat protection by PTC
Power Range
Single-phase 115V series: 0.2~0.75kW (0.25~1hp)
Single-phase 230V series: 0.2~2.2kW (0.25~3hp)
3-phase 230V series: 0.2~3.7kW (0.25~5hp)
3-phase 460V series: 0.4~3.7kW (0.50~5hp)
Compact Design
Space saving and easy DIN rail mounting with optional DIN rail adapter(Built-in for Frame B)
Optional Fieldbus Modules
Provide connection to a variety of networks, including PROFIBUS, DeviceNet and CANopen
RFI Switch for IT Mains
Removable "Y" capacitor to use with IT mains supplies
DC Bus Sharing
Multiple VFD-EL can be connected in parallel to share the regenerative braking energy.
This prevents over-voltage and stabilizes DC bus voltage.
Easy Maintenance
Removable cooling fan for easy maintenance
Application:
● Conveyor and Transportation Machinery
● Fan/Pump Equipment
● Paper/Textile Machinery
● Food Processing
● Wood Working Machinery
● Machine Tool/Metal Processing Machinery
● Others
