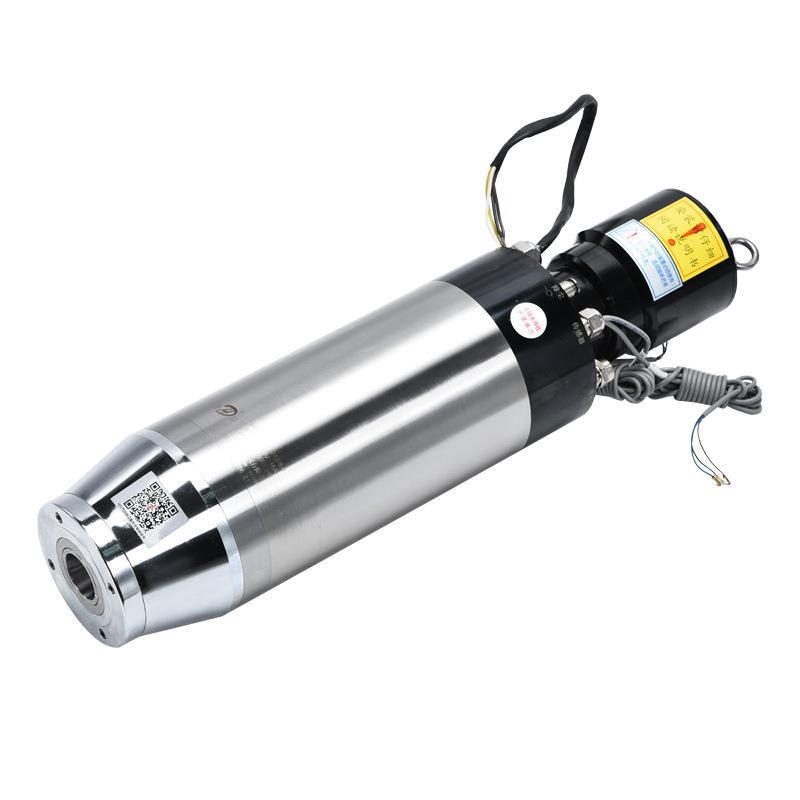

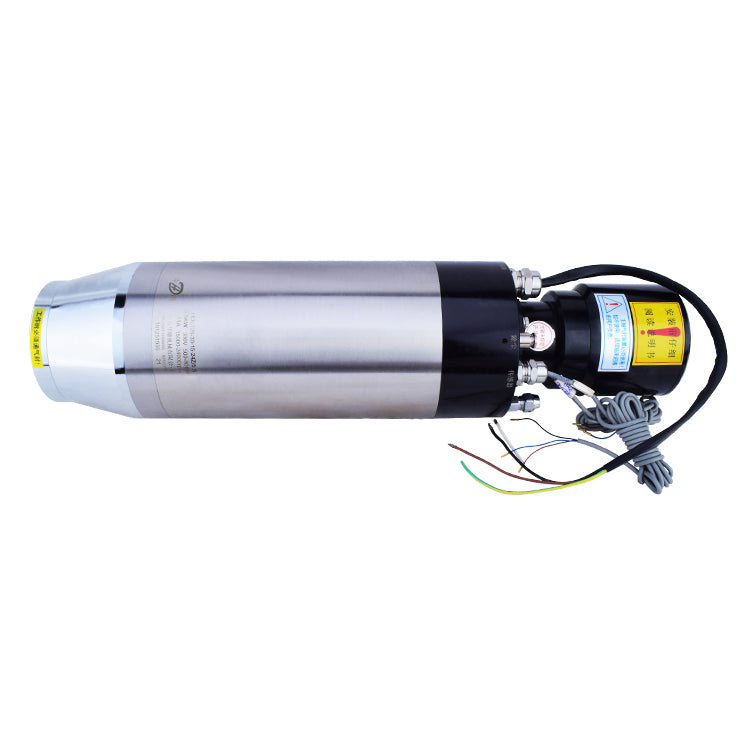

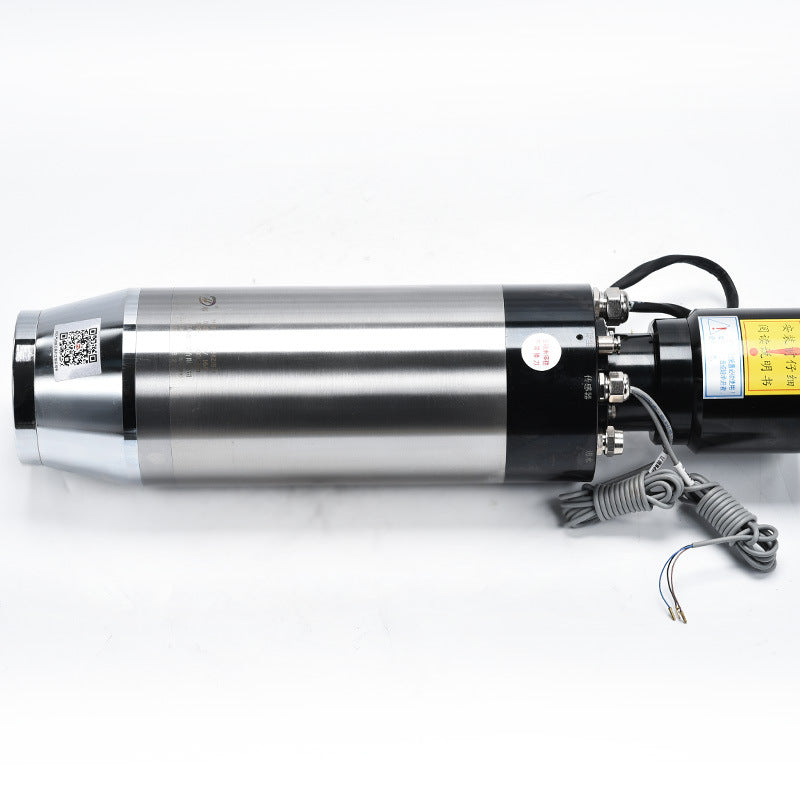

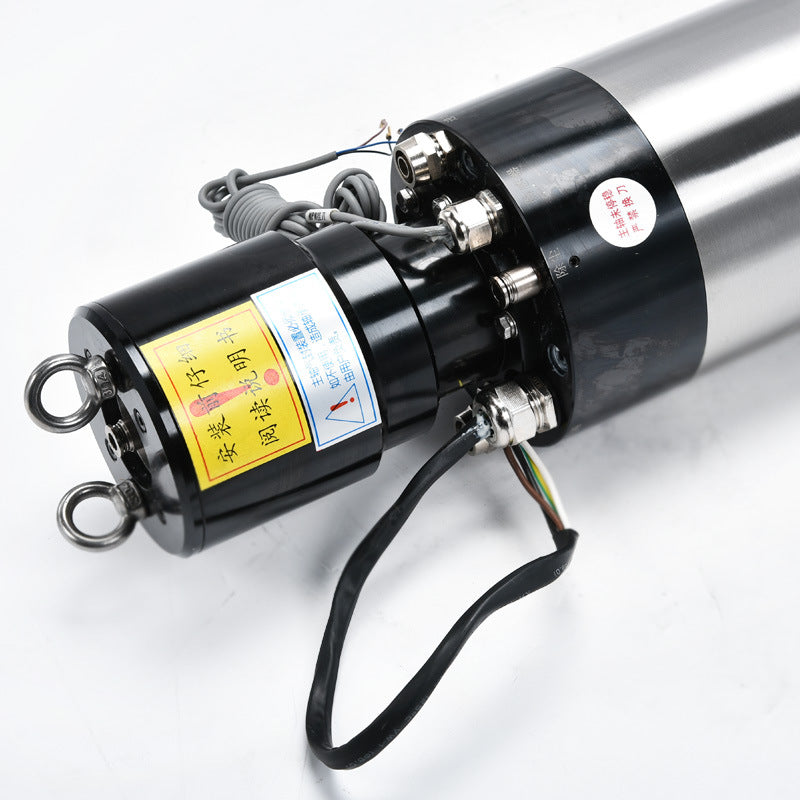

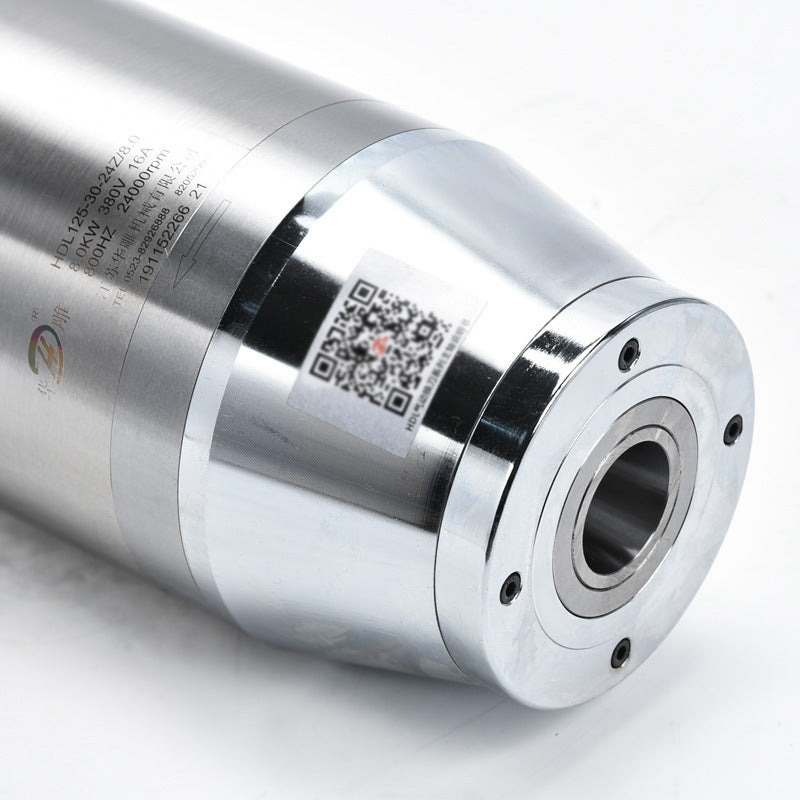

Machine tool spindle High-speed electric spindle CNC engraving machine HDL125-30-24Z/5.5 atc electric spindle

HDL125-30-24Z/5.5:

HDL125-30-24Z/7.5:

1.The electric spindle and inverter should be used together, the specification and parameter setting of the inverter should match with the rated parameters of the electric spindle, if the setting is not correct, it will burn the electric spindle.

2. When the electric spindle clamps the tool, be sure to clean the barrel, nut and inner taper hole to avoid affecting the accuracy, and the tool shank must be inserted into the barrel more than 15mm.

3.The electric spindle must be warmed up when processing every day, and the electric spindle should reach the processing speed and run for 15-20 minutes before finishing, and it is advisable to let the electric spindle stop for 2 hours every day so that the machine can rest and thus prolong the service life.

4. It is strictly forbidden to knock the end cover of the electric spindle, and to knock the cylinder clamp and tool head when unloading the tool. Be strict in transportation, storage and use, especially the shaft end.

5. Electric spindle using air seal, air source must be oil-water separator, filter drier before use, air seal air pressure 0.MPA, filter precision 5MM, otherwise it will cause bearing damage.
