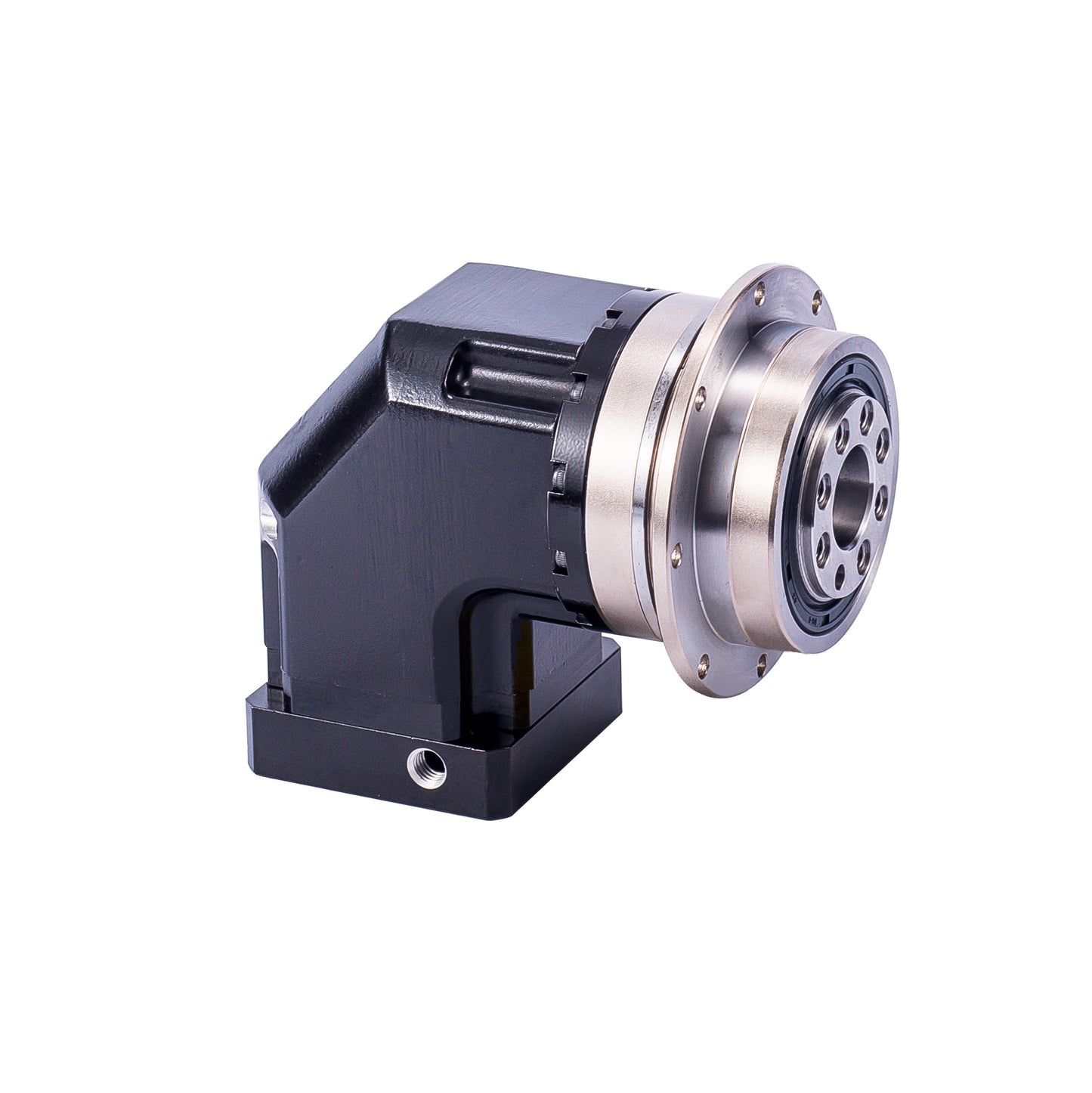

Newest WAD High Torque Helical Gear Planetary Gearbox 0.1kw- 15kw

Feature:

a. Planetary boom and output shaft are intergrated structure designed to ensure maximum torsional rigidity.

b. Planetary gear with full needle design, increases contact area to improve rigidity and output torque

c. The gears are carburized and quenched to HRC62 with low carbon steel surface for optimum wear and impact toughness

d. Gears refer to oversea imported software-assisted design to obtain the best booth shape to reduce noise

e. The input end is connected with motor shaft in a double-tight method to obtain the maximum clamping force and zero backlash transmission.

Advantage:

High input speed: maxium 10000rpm

Low backlash: 1-stage, P<2arcmin; 2-stage, P<3arcmin

Low noise: exquisite design, precision manufacturing, noise below 63dB(A)

High ratio: modular design, planetary gearboxes can be conbined to reach high speed ratio

High transmission efficiency: >97%
